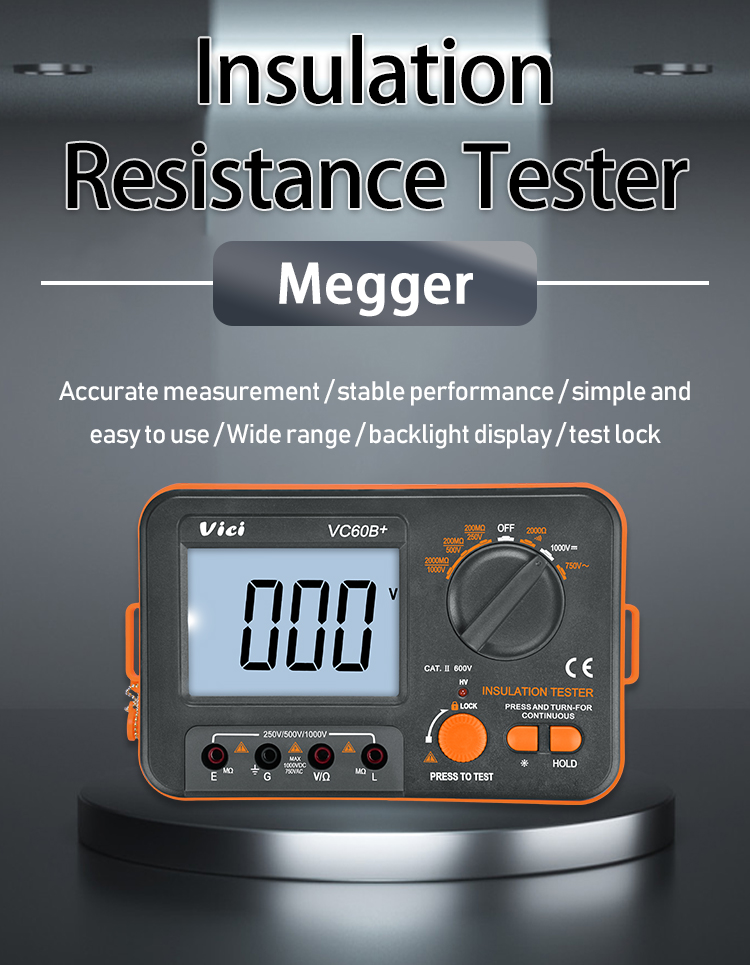

VC60B+ Insulation Resistance Tester, Alarm for High voltage, Audible & Visual Alarm for short circuit, AC voltage, Resistance, Continuity tests.
VC60B+ insulation tester, with safety protection high voltage warning, insulation breakdown short circuit alarm, continuous insulation test device for specific environment, accurate and safe for you to use with peace of mind. It can test the insulation resistance between various generators, motors, power sockets, cables, enameled coils, conductors and non-conductors on trains, EMUs, and equipment.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
Resolution |
|
|
Insulation Resistance |
250V±10% test voltage |
0~200MΩ |
±(4.0%+2) |
100kΩ |
|
500V±10% test voltage |
0~200MΩ |
100kΩ |
||
|
1000V±10% test voltage |
0~2GΩ |
1MΩ |
||
|
Resistance |
0~2kΩ |
±(1.0%+5) |
1Ω |
|
|
DCV |
0~1000V |
1V |
||
|
ACV |
0~750V |
±(1.5%+5) |
1V |
|
Special Function:
|
Model |
VC60B+ |
|
Continuity alarm |
Less than 30Ω±10Ω |
|
Low battery indication |
Less than approx.7.5V |
|
Data hold |
√ |
|
LCD backlight |
Approx.10Sec. |
|
Function protection |
√ |
|
Input impedance |
1MΩ |
|
Sampling rate |
3 times/Sec. |
|
AC frequency response |
50-200Hz |
|
Operation mode |
Manual range |
|
Max. display |
1999 |
|
LCD size |
75 x |
|
Power source |
1.5V AA battery x6pcs, or external DC 9V power source |
|
Power consumption |
Quiescent current approx.3mA |
