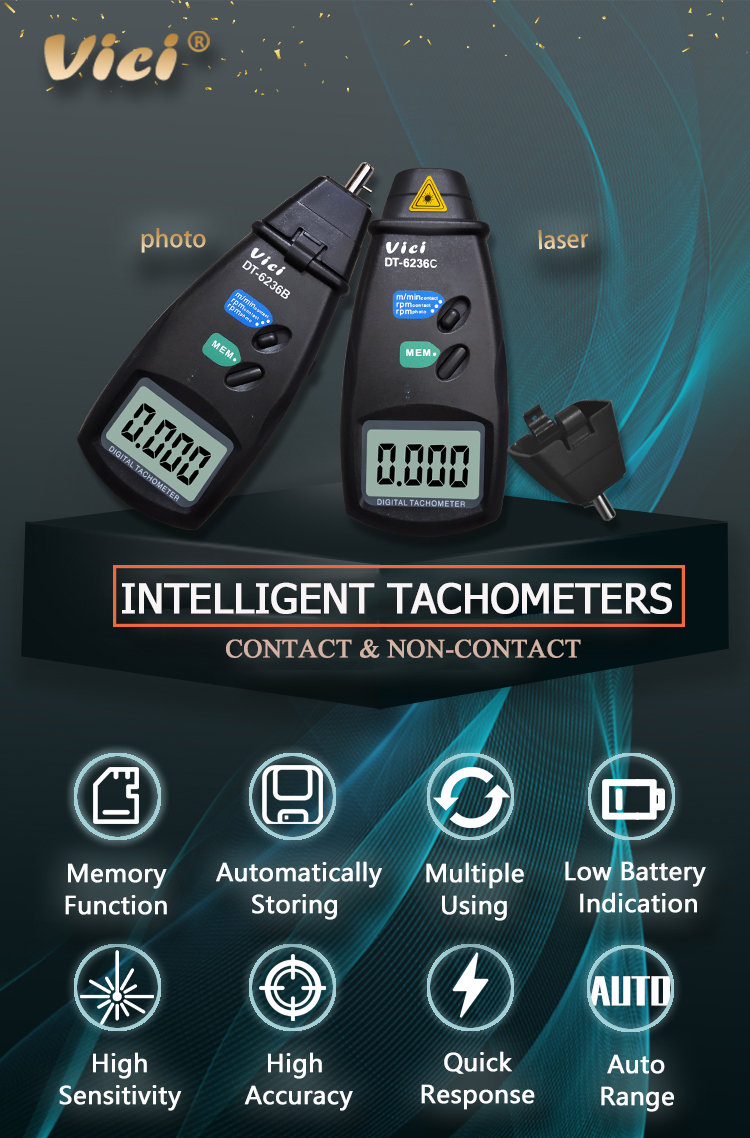

DT-6236C Laser non-contact RPM contact RPM and Surface speed testing Tachometer, Auto memory max/min/last value, Auto store data.
DT-6236C non-contact laser and contact rpm digital tachometer is mainly used for touchless speed testing of rotors such as various engines, motors, speed control devices and wire speed tests of various conveyor belts. It is used in the speed debugging of various devices such as aircraft, ships, EMUs, automobiles, model aircraft, toys, etc.; and the surface speed debugging of assembly lines and transmission dials.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
photoelectric rotation speed |
2.5～99999RPM(r/min) |
±（0.05%+1digit） |
|
Contact rotation speed |
0.5～19,999RPM (r/min) |
±（0.05%+1 digit） |
|
Contact surface speed |
0.05～ |
±（0.05%+1 digit） |
|
Contact surface speed |
0.2～6560ft/min |
- |
Special Function:
|
Model |
DT |
|
Measuring way |
Laser detecting |
|
Resolution |
photoelectric rotation speed： 0.1RPM(2.5～999.9RPM) 1RPM(over 1000RPM) Contact rotation speed： 0.1RPM (0.5～999.9RPM) 1RPM (over 1000RPM) Contact line speed： |
|
Sampling time |
0.8s(over 60RPM) |
|
Range selection |
Auto switch |
|
Effective distance |
50mm～ |
|
Power Consumption: |
Max. 55mA |
|
Memory |
Auto memory Max./Min. last value |
|
Time Base |
6MHz Quartz crystal |
|
Accuracy of time base |
10×10-6 ( |
|
Battery |
4X1.5V AA Size Battery or to external DC 6V |
|
Size |
210mm×74mm× |
|
Max. display |
99999 |
|
LCD size |
5digits |
|
Backlight |
Yellow green backlight LCD |
