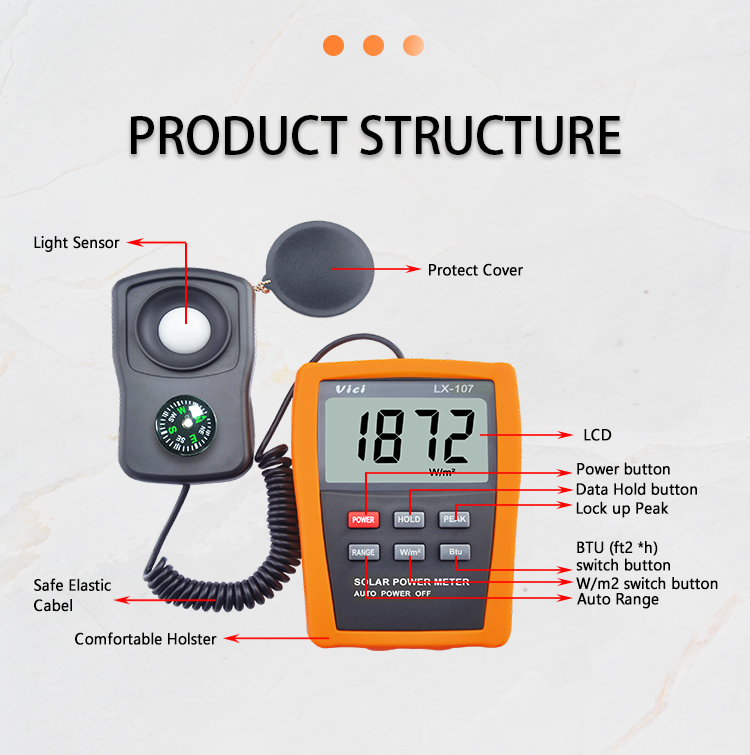

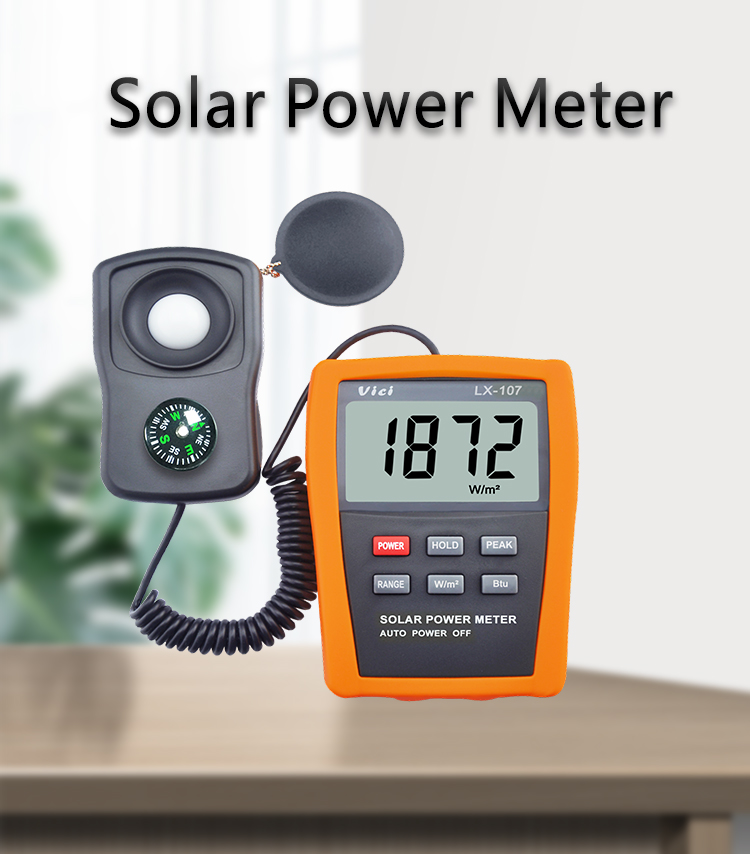

LX-107 Solar Power Meter, W/m2 & BTU unit display, Max/Min, Data hold function.

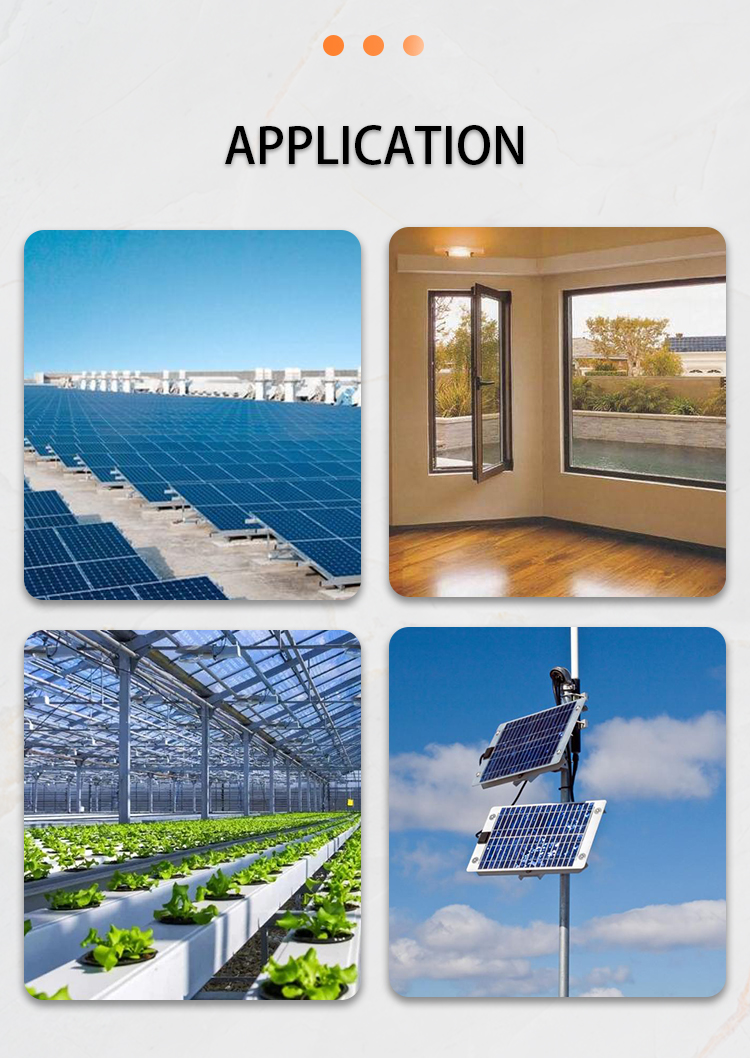

LX-107 solar power meter is for testing solar installation, which is mainly used in solar radiation measurement, solar research, physics and optical laboratories, identification of high-performance windows, in meteorology, agriculture, industry and wide applications.
Technical Data:
|
Basic function |
Range |
Accuracy |
|
W/ m² |
2000 W/ m² |
Typically within ±10W/m2 or ±5% whichever is greater in sunlight. Additional temperature included error±0.38 W/m2 / ℃ deviation from 25℃ |
|
BTU |
634BTU (ft2 x h) |
Typically within ±BTU/ (ft2 x h) or±5% whichever is greater in sunlight. Additional temperature included error [±0.12 BTU/ (ft2xh)] / ℃ deviation from 25 ℃ |
Specific Function:
|
Device Name |
Solar Power Meter |
|
Model |
LX-107 |
|
Max. display |
3½ digits (1999 digts) |
|
Angular accuracy |
Cosine corrected <5% for angles <60° |
|
Drift |
< ±2% per year |
|

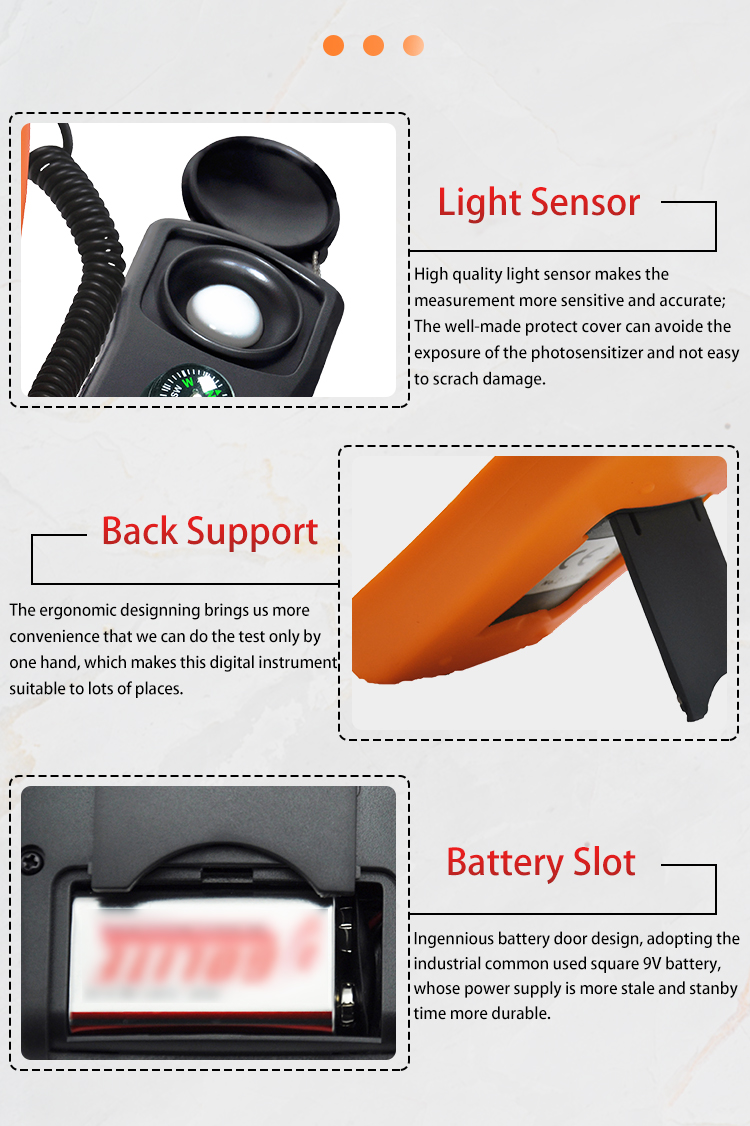

Sensor |
Photo diode and filter |
|
Overload display |
Display “OL” |
|
Sampling rate |
2.5 times/second |
|
Operating Temperature &Humidity |
0 ℃ ~ 50 ℃ below 80% RH |
|
Storage temperature |
-10 ℃ ~ 60 ℃ below 70% RH |
