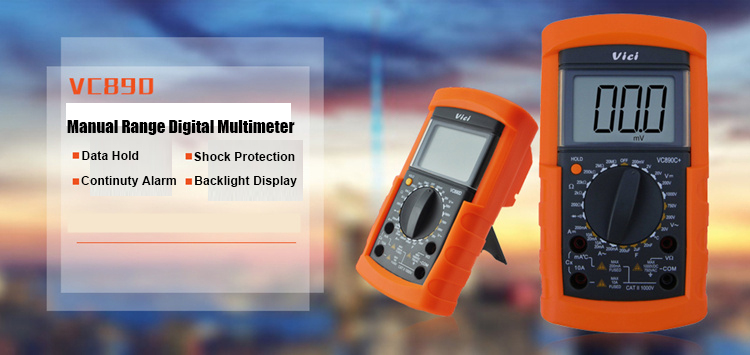

VC890C+ Manual ranging, Max 200uF capacitance, Anti-high pressure ignition design, high-strength anti-drop protection shock-proof holster.

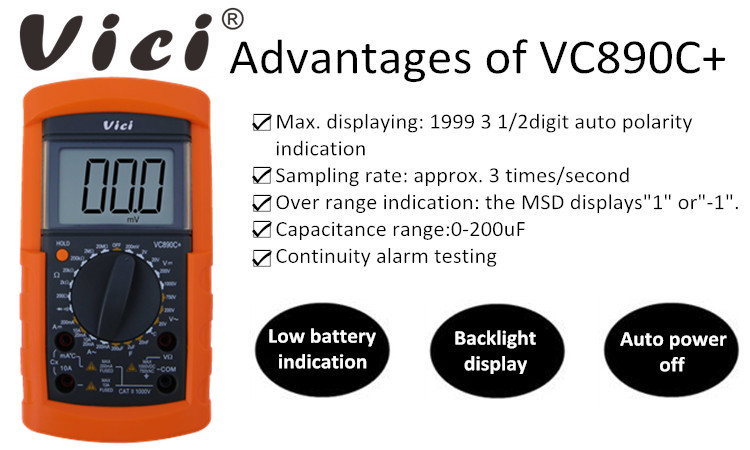

VC890C+ multimeter, DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Temperature, Diode and Contunity tests; Designed with unit symbol, data hold, Auto power off and alarm functions.
2000 digits display.
2000 digits display.
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
DCV |
200mV/2V/20V/200V/1000V |
±(0.5%+3) |
|
ACV |
20V/200V/750V |
±(0.8%+5) |
|
DCA |
20mA/200mA/ |
±(0.8%+5) |
|
ACA |
20mA/200mA/ |
±(1.5%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/200kΩ/2MΩ/20MΩ |
±(0.8%+3) |
|
Capacitance |
20nF/2uF/200uF |
±(3.0%+10) |
|
Temperature |
|
±(0.8%+4) |
Special Function:
|
Model |
VC |
|
Diode test |
√ |
|
Continuity alarming |
Approx. less than 30Ω |
|
Low battery indication |
Approx less than 7.5V |
|
Data hold |
√ |
|
Function protect |
√ |
|
Anti-shock protect |
√ |
|
Input impendence |
10MΩ |
|
Sampling rate |
3times/s |
|
AC Frequency response |
40-400Hz |
|
Operation way |
Manual range |
|
Max. display |
1999 |
|
LCD size |
55x |
|
Battery |
9V ( |
|
Power consumption |
Quiescent current approx. 3mA |
