DM202 Clamp open 35mm, True RMS, NCV, Temperature tests, Backlight.

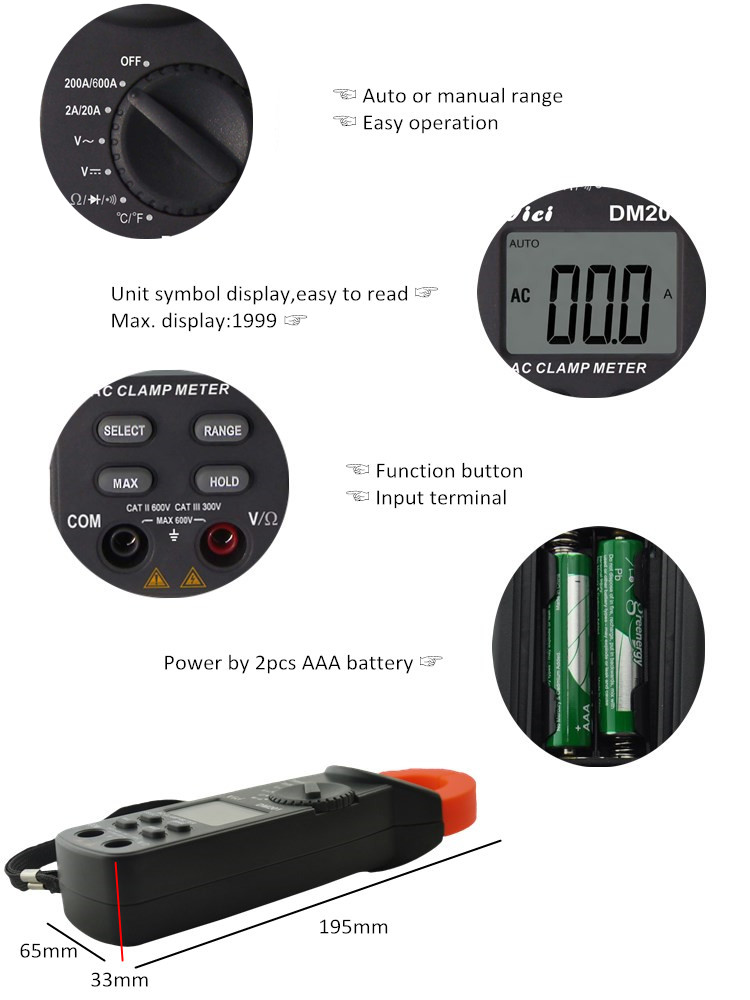

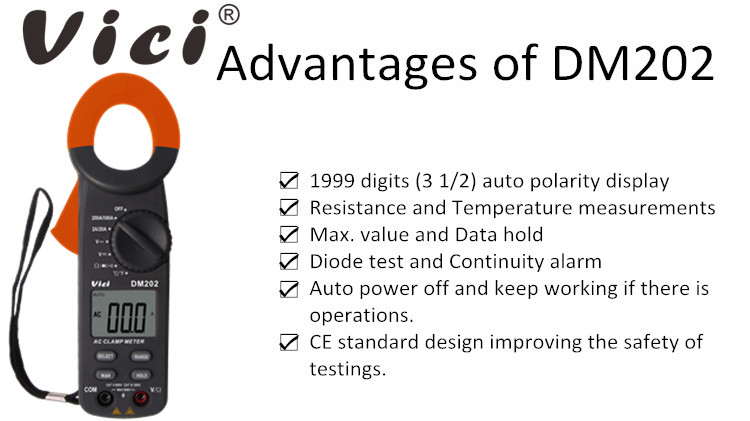

DM202 clamp meter, available to DC voltage, AC voltage, AC current, resistance, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, auto ranging switch, auto power off and alarm functions.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
+/- (0.5%+5) |
|
ACV |
200mV/2V/20V/200V/600V |
+/- (1.0%+5) |
|
ACA |
|
+/- (2.0%+5) |
|
Resistance |
200/2k/20k/200k/2M/20M ohm |
+/- (0.8%+3) |
|
Temperature |
(-40 ~ 1000) ℃ |
+/- (1.0%+5) |
|
(-40 ~ 1832)℉ |
+/- (1.0%+5) |
Special Function:
|
Model |
DM202 |
|
Diode test |
YES |
|
Continuity alarming |
Less than 30 ohm |
|
True RMS test |
YES |
|
NCV test |
YES |
|
Low battery indication |
Approx. less than2.4 V |
|
Data hold |
Data hold/Max. hold |
|
Auto power off |
About 15 minutes |
|
Function protect |
Full function protection |
|
Input impedance |
10M ohm |
|
Sampling rate |
3times /s |
|
AC frequency response |
Amper 50Hz / Voltage (40-400)Hz |
|
Operation way |
Manual or auto range |
|
Max. display |
1999 |
|
Clamp open |
|
|
Battery |
3V (2*1.5V) |
