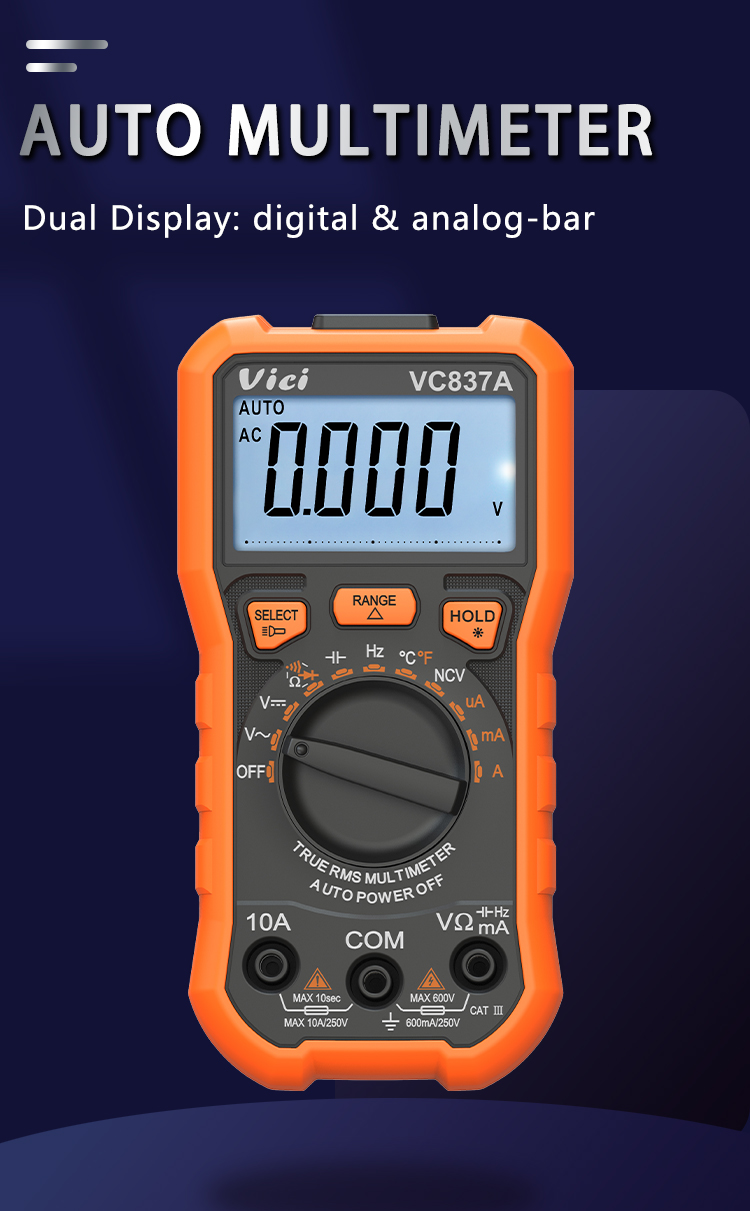

VC837A True RMS test, Analog bar display, NCV test, Data hold, Backlight, Torch lighting function.
VC837A multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Capacitance, Frequency, Non-contact voltage detecting, Duty-cycle, Temperature, Diode and Continuity tests; Designed with unit symbol, backlight display, analog bar display, torch lighting, data hold, auto ranging switch, auto power off and alarm functions.
6000 digits display
6000 digits display
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
600mV/ 6V/ 60V/ 600V |
±(0.5%+4) |
|
ACV |
6V/ 60V/ 600V/ 600V |
±(0.8%+6) |
|
DCA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A |
±(1.0%+5) |
|
ACA |
600uA/ 6000uA/ 60mA/ 600mA/ 6A/ 10A |
±(1.5%+5) |
|
Resistance |
600Ω/ 6kΩ/ 60kΩ/ 600kΩ/ 6MΩ/ 60MΩ |
±(0.8%+1) |
|
Capacitance |
60nF/ 600nF/ 6uF/ 60uF/ 600uF/ 6mF/ 60mF |
±(2.5%+5) |
|
Frequency |
10Hz/ 100Hz/ 1kHz/ 10kHz/ 100kHz/ 1MHz/ 10MHz |
±(0.5%+4) |
|
Temperature |
-40℃～1000℃ |
±(1.0%+5) |
|
-40℉～ |
±(1.0%+5) |
Specific Function:
|
Model |
VC837A |
| True RMS | √ |
|
NCV |
√ |
|
Analog bar |
√ |
|
Data hold |
√ |
|
Function protection |
√ |
|
Torch function |
√ |
|
Backlight display |
√ |
|
Duty cycle |
1%~99% |
|
Diode test |
0V~3.3V, it displays “OL” if over 3.3V |
|
Continuity alarm |
Less than 50Ω, it displays “OL” if over 610Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual or Auto range |
|
Max. display |
6000 |
|
LCD size |
61x28mm |
|
Battery |
3V (1.5V AAA×2) |
|
Power consumption |
Quiescent current about 2mA |
