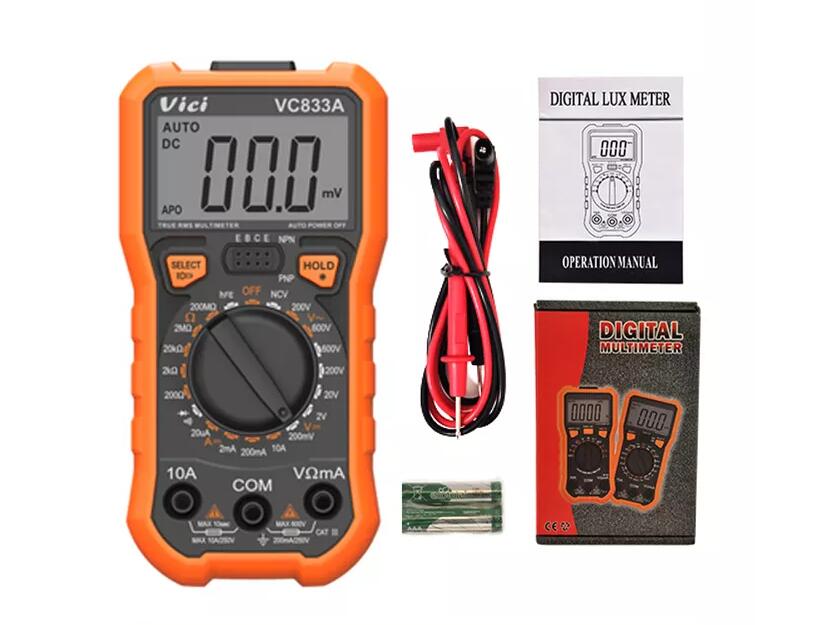

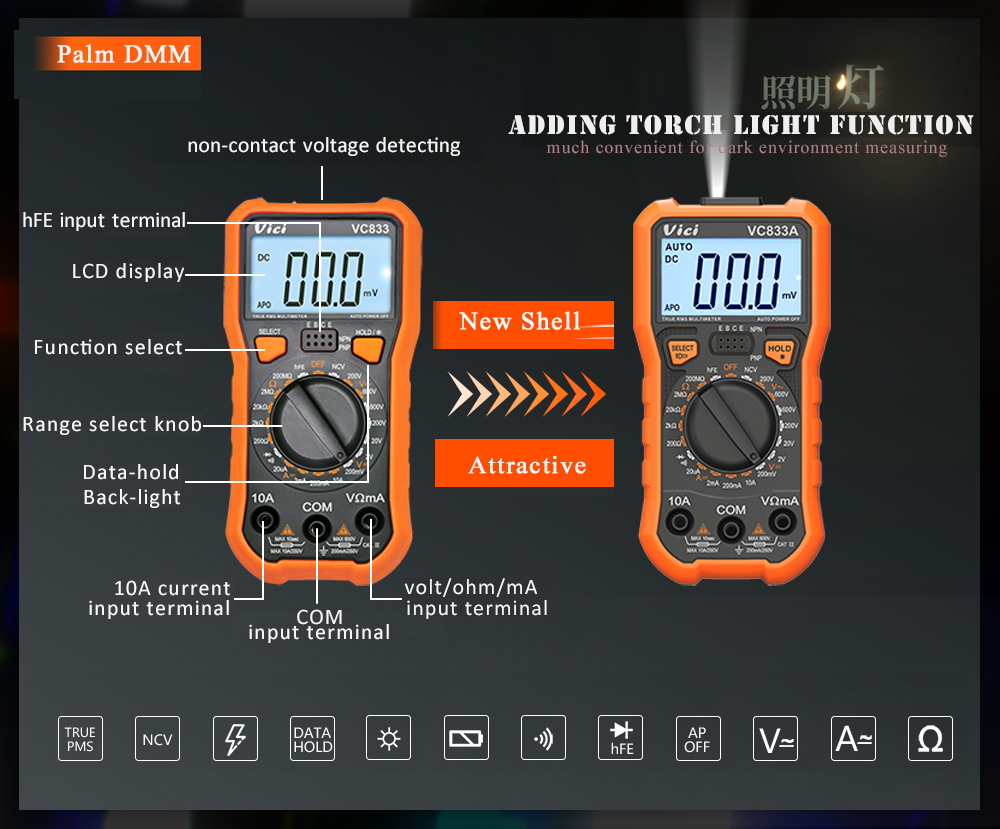

VC833A Manual ranging, True RMS, NCV test, Data hold, Backlight, Torch lighting function.
VC833A multimeter, available to DC voltage, AC voltage, DC current, AC current, Resistance, Non-contact voltage detecting, hFE, Diode and continuity alarm tests; Designed with unit symbol, backlight, data hold, torch lighting, auto power off and alarm functions; 2000 digits display.
Technical Data:
|
Basic function |
Range |
Basic Accuracy |
|
DCV |
200mV/2V/20V/200V/600V |
±(0.5%+4) |
|
ACV |
200V/600V |
±(0.8%+6) |
|
DCA |
20uA/2mA/200mA/10A |
±(1.0%+5) |
|
Resistance |
200Ω/2kΩ/20kΩ/2MΩ/200MΩ |
±(0.8%+1) |
Special Function:
|
Model |
VC833A |
|
NCV |
√ |
|
Data hold |
√ |
|
True RMS |
√ |
|
Function protection |
√ |
|
Backlight display |
√ |
|
Torch lighting function |
√ |
|
Diode test |
0V~2V, it displays “OL” if over 2V |
|
hFE test |
0~2000 |
|
Continuity alarm |
Less than 50Ω, it displays “OL” if over 200Ω |
|
Low battery indicator |
Approx. less than 2.4 V |
|
Auto power off |
About 15 minutes |
|
Input impedance |
10MΩ |
|
Sampling rate |
3 times/s |
|
AC frequency response |
40Hz-2kHz |
|
Operation method |
Manual range |
|
Max. display |
2000 |
|
LCD size |
61x28mm |
|
Battery |
3V (1.5V AAA×2) |
|
Power consumption |
Quiescent current about 2mA |
