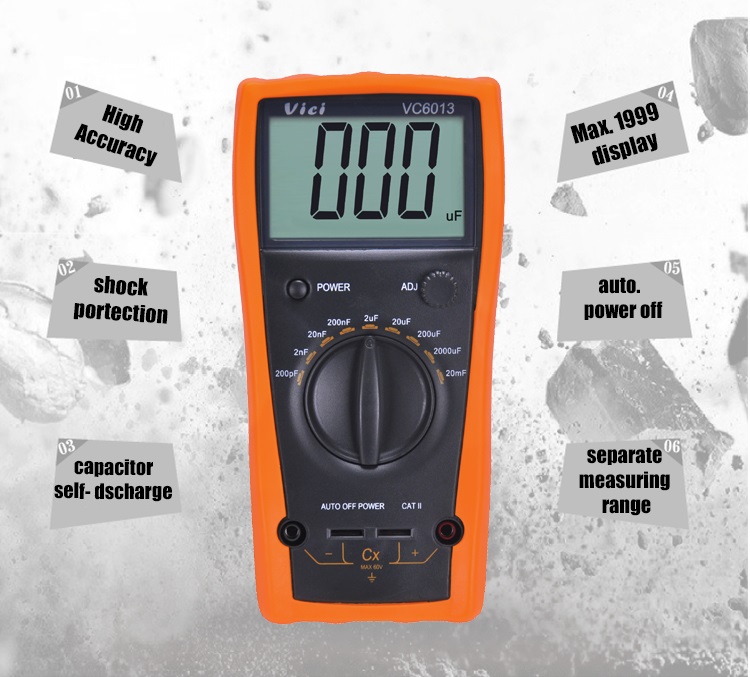

VC6013 High Accuracy Digital Capacitance Meter, Capacitor self-discharge (avoid buring the meter).
VC6013 capacitance meter, available to detect capacitance tolerance values, classify values, select accuracy values, and measure the capacitance of cable, switch or printed circuit board circuit deisigns.
2000 digits display
2000 digits display
Technical Data:
|
Basic function |
Range |
Basic accuracy |
|
Capacitance |
200pF/2nF/20nF/200nF/2uF/20uF/200uF/2000uF/20mF |
±(0.5%+1) |
Special Function:
|
Model |
VC6013 |
|
Low battery indication |
Approx. less than 7.5V |
|
Capacitor discharge protect |
√ |
|
Auto power off |
It will power down about 30 minutes if no any measure. |
|
Function protection |
√ |
|
Anti-shock protection |
√ |
|
Sampling rate |
3times/s |
|
Operation way |
Manual range |
|
Max. display |
1999 |
|
LCD size |
65× |
|
Battery |
9V ( |
|
Power consumption |
Quiescent current approx. 3mA |
