CM-2007 28mm clamp open, 800A True RMS, Capacitance Frequency, Temperature, NCV tests, Backlight, Clamp lighting function.

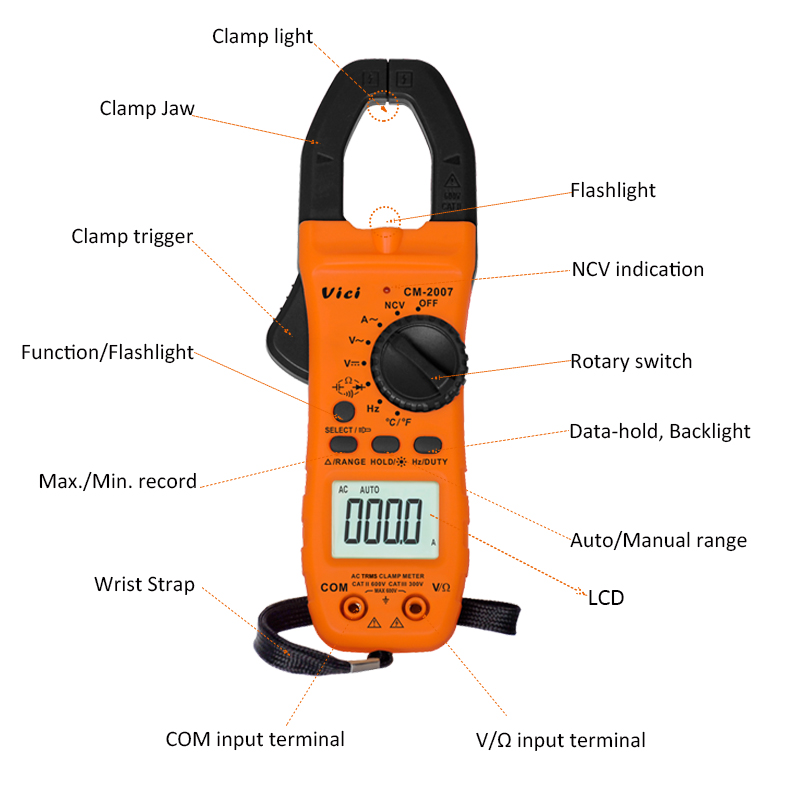

CM-2007 clamp meter, available to DC voltage, AC voltage, AC current, resistance, capacitance, frequency, non-contact voltage, temperature, diode and continuity tests; Designed with unit symbol and backlight display, data hold, clamp lighting, auto ranging switch, auto power and alarm functions.
4000 digits display
4000 digits display
Technical Data:
|
Basic function |
Range |
Accuracy |
|
|
DCV |
400mV/4V/40V/400V/600V |
+/- (0.5%+5) |
|
|
ACV |
400mV/4V/40V/400V/600V |
+/- (1.0%+5) |
|
|
ACA |
4A/40A/400A/800A |
+/- (2.0%+5) |
|
|
Resistance |
400/4k/40k/400k/4M/40M ohm |
+/- (0.8%+3) |
|
|
Capacitance |
4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF |
+/- (2.5%+5) |
|
|
Frequency |
10Hz/100Hz/1kHz/10kHz/100kHz/1MHz/10MHz |
+/- (0.5%+5) |
|
|
Temperature |
-40℃ to 1000℃ | -40 to 1832℉ |
+/- (1.0%+5) |
|
|
|
|||
|
Model |
CM-2007 |
||
|
NCV, TRMS |
YES |
||
|
Diode test |
YES |
||
|
Continuity alarm |
Less than 30 ohm |
||
|
Low battery indication |
Less than 2.4 V |
||
|
Data hold |
YES |
||
|
Auto power off |
Approx. 15minutes |
||
|
Function protection |
YES |
||
|
Clamp light display |
YES |
||
|
Backlight display |
YES |
||
|
Input impedance |
10M ohm |
||
|
Sampling rate |
3 times/second |
||
|
AC frequency response |
Current (40 to 1000) Hz, Voltage (40 to 2000) Hz |
||
|
Operation method |
Auto range |
||
|
Max. display |
4000 |
||
|
Clamp open |
28mm |
||
|
Power source |
3V (2pcs #7 batteries) |
||
